About BDC Variable Library

A LinkML-based variable library for BioData Catalyst datasets.

Background

BDC Variable Library (BDCVL) re-organizes the study-by-study transform specs in RTI International's NHLBI-BDC-DMC-HV repository around harmonized concepts rather than around individual studies. Where the source repo has one transform file per study per concept (e.g. ARIC-ingest/afib.yaml, MESA-ingest/afib.yaml, ...), BDCVL pools all of a concept's contributing studies into a single LinkML slot, so afib is one slot with a comma-delimited source_study / dataset_accession / variable_accession annotation rather than eleven separate near-duplicate slots.

Example: the Condition/Disease category

Each category module is a LinkML class whose slots are its concepts. Here's what that looks like for ConditionDisease — every concept as a row, every contributing cohort as a column:

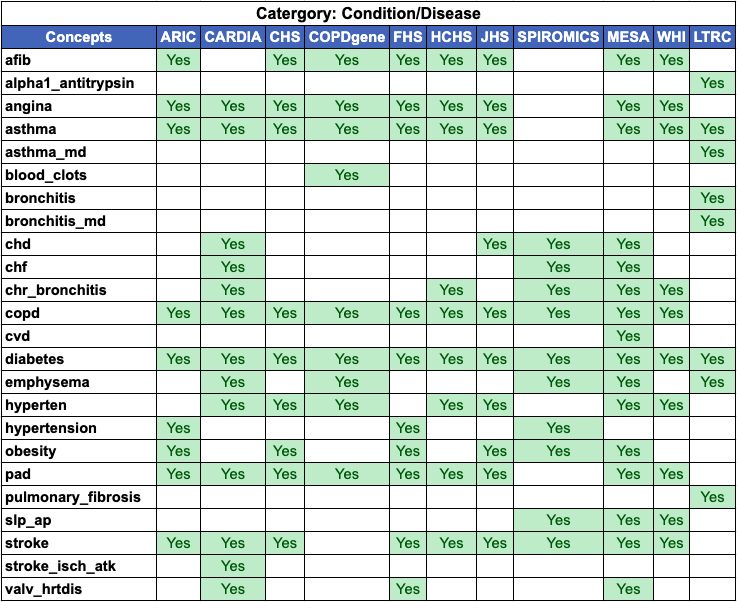

Condition/Disease concept coverage by cohort

Reading this: afib is contributed by 9 of the 11 cohorts (CARDIA and SPIROMICS don't have it); alpha1_antitrypsin and bronchitis_md are LTRC-only, introduced when LTRC was added as an 11th study; cvd comes from MESA alone. Every other category module (Lab Measurement, Treatment/ Medication, ...) follows the same shape — see the Schema tab to browse any of them directly.

Concepts per category

And the same data collapsed one level further — total concept count per category, independent of cohort:

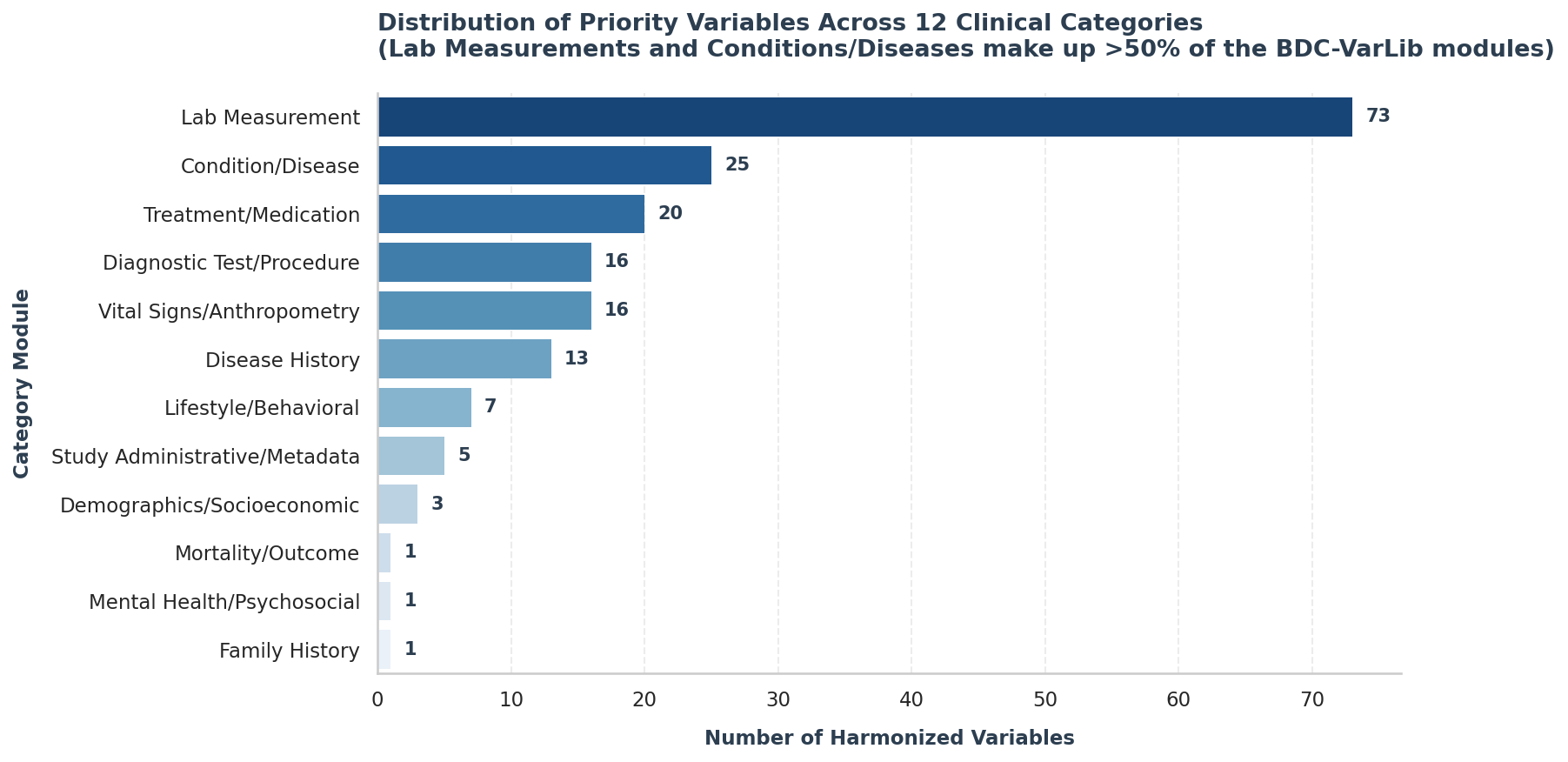

Distribution of concepts across the 12 category modules

Lab Measurement and Condition/Disease together account for over half the library; five categories (Family History, Mental Health/Psychosocial, Mortality/Outcome, Demographics/Socioeconomic, Study Administrative/ Metadata) are intentionally small — they reflect how many distinct harmonized concepts the source repo defines in that category, not how important the category is.

Concept coverage across all categories

The same idea, rolled up: how many concepts per category each cohort contributes, across all 12 category modules at once.

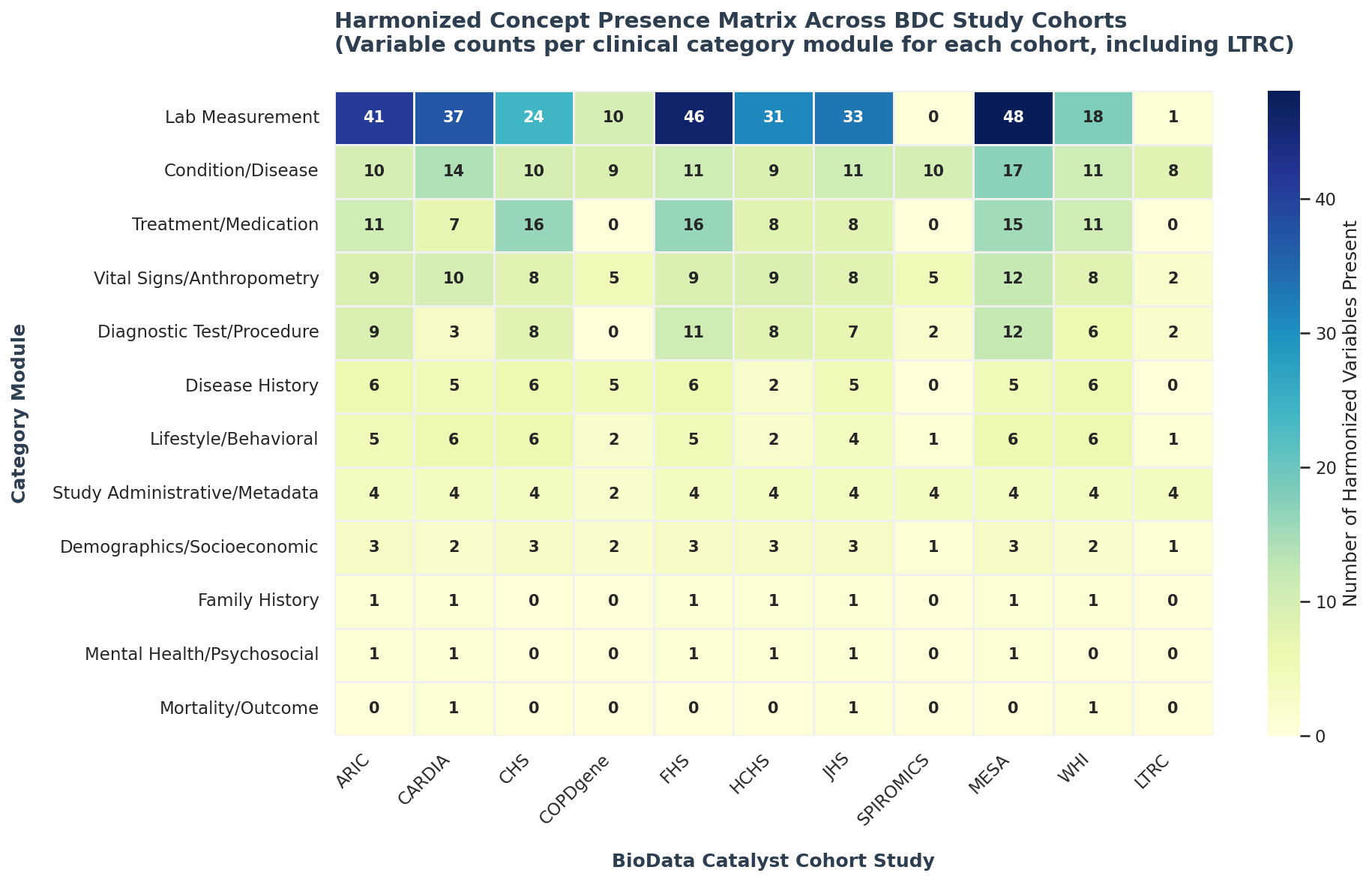

Harmonized concept presence matrix across all categories and cohorts

A few things stand out here: Lab Measurement dominates for the cohorts with deep biomarker panels (FHS at 46, MESA at 48); SPIROMICS is the one cohort with zero Lab Measurement and zero Treatment/Medication concepts, unusual since every other cohort has double digits in Lab Measurement — consistent with SPIROMICS being a COPD-focused imaging/spirometry study rather than a biomarker-heavy cardiovascular cohort, while it still contributes 10 Condition/Disease and 5 Vital Signs/Anthropometry concepts; and LTRC, being the newest addition, only shows up meaningfully in Condition/Disease (8) and Study Administrative/Metadata (4) so far.

From category → concept → variable

The library has three levels, and it's worth being explicit about what each one is:

Level	LinkML construct	Example	What the three figures above show
Category	class	`ConditionDisease`	the bar chart, and the rows of the heatmap
Concept	slot	`afib`	the rows of the Condition/Disease table, and the heatmap's cell counts
Variable	annotation entries on a slot	one real dbGaP `phv`/`pht` pair	not visualized above — see below

A concept's slot doesn't stop at "which cohorts have it" — every contributing cohort can have multiple real dbGaP variables behind it (one per exam wave, hospital form, or follow-up survey that captured the same concept). Those are recorded as comma-delimited lists in the slot's annotations, not exploded into separate slots. For afib specifically:

afib:
  title: afib
  description: CLINICAL_DIAGNOSIS; PATIENT_SELF-REPORTED_CONDITION
  range: ConditionStatusEnum
  annotations:
    bdchm_class: Condition
    source_study: ARIC, CHS, COPDGene, FHS, HCHS, JHS, MESA, WHI
    dataset_accession: pht004037, pht004038, pht004039, ... # 79 datasets total
    variable_accession: phv00203303, phv00203306, phv00203309, ... # 103 variables total

That one slot represents 79 real dbGaP datasets and 103 real dbGaP variables, pooled from 8 cohorts, into a single harmonized afib concept. Across all 181 concepts in the library, this is the norm rather than the exception for any concept collected across multiple exam cycles.

There's no separate "variables" visual here on purpose — with 181 concepts each potentially backed by dozens of accessions, a chart at that resolution would just be the schema files themselves. The right way to explore that level is the Schema tab, where every concept's slot page lists its full, real dataset_accession / variable_accession lists.

Structure

bdc_varlib.yaml — the umbrella schema; imports every category module.
bdc_varlib_common.yaml — enums shared across categories (e.g. ConditionStatusEnum), so every category module is self-contained and can be loaded standalone, not only via the umbrella.
bdc_varlib_<category>.yaml — one module per biomedical category (Condition/Disease, Lab Measurement, Treatment/Medication, ...); see the Home page for the full module list.

Provenance

Every variable's annotations record exactly which studies, dbGaP datasets (pht), and dbGaP variables (phv) it was derived from, so any slot can be traced back to its source transform file. Where a real ontology mapping exists in the source data (MONDO for conditions, RxCUI for medications, OMOP for coded categorical values), it's carried through as a real LinkML exact_mappings entry rather than free text.

Source

Generated from RTIInternational/NHLBI-BDC-DMC-HV.
